Projectile Tracing Tool Overview

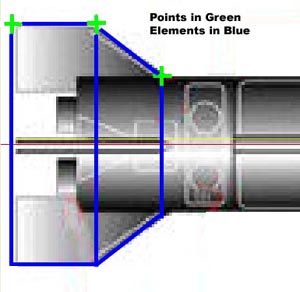

The Projectile Tracing Tool can be used to capture the projectile geometry from a picture with a few simple mouse clicks. The picture below shows several fin elements drawn by the projectile profiler.
Once the basic setup is done, defining an element is as simple as:
  • Clicking the points that define the left and right corners of the element
  • Selecting those points to define the element

The basic goal of the Projectile Editor is to allow the user to input projectile dimensions into PRODAS Version 3 directly from a picture of the projectile. This will allow the user to model the projectile even if a dimensioned set of drawings is not available.
